Aanvraag
The cables are designed for medium frequency data or telephone systems, suitable for indoor or outdoor insulations.
Normen
• TIA/EIA-568B
• IEC 61156-4
• UL-444
• ANSI/ICEA S-80-576
Bouw
Dirigenten
Solid annealed bare copper sized 0.5mm (24 AWG) as per ASTM-B3/class 1 of IEC 60228
Isolatie
Solid polyethylene as per ASTM D 1248/IEC 60708
Twisted Pairs
Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk

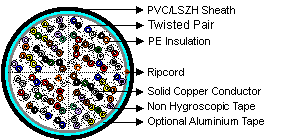

Cable Core Assembly
The 50-pair cable is composed of 4 units having 12 or 13 pairs each. All other cables are composed of 25-pair units. Units are identified by colour coded binders
Core Wrapping
Non-hygroscopic dielectric tape fully enclosing the core with an overlap
Scherm (optional)
An optional Aluminium/Polyester tape placed in contact with solid copper drain wire may be provided as an option
Condooms
PVC or LSZH
Ripcord
Nylon ripcord may be placed parallel to the cores to facilitate sheath removal
Elektrische eigenschappen
Mechanical and Thermal Properties
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter (unarmoured cable);15 x Overall Diameter (armoured cables)
Colour Code
Standard Colour Code is per TIA/EIA 568B or ICEA S-80-576 as given in Colour Code Chart.
Afmetingen en het gewicht
PE INSULATED CATEGORY 3 UTP CABLES
| Kabel-code |
Aantal paren |
Nominale Condooms Dikte
mm |
Nominal Overall
Diameter
mm |
Nominale Gewicht
kg/km |
| 0.5mm Conductor, 0.9mm Insulated Wire, UTP, PVC Sheathed, Indoor |
TP568-2YY-10P05-UTPC3 |
10 |
0.9 |
9.5 |
77 |
TP568-2YY-25P05-UTPC3 |
25 |
0.9 |
12.5 |
155 |
TP568-2YY-50P05-UTPC3 |
50 |
1.0 |
17.0 |
260 |
TP568-2YY-100P05-UTPC3 |
100 |
1.1 |
21.5 |
530 |
TP568-2YY-200P05-UTPC3 |
200 |
1.2 |
29.5 |
1100 |
TP568-2YY-300P05-UTPC3 |
300 |
1.3 |
33.5 |
1550 |
| 0.5mm Conductor, 0.9mm Insulated Wire, UTP, LSZH Sheathed, Indoor & Outdoor |
TP568-2YH-10P05-UTPC3 |
10 |
0.9 |
10.0 |
80 |
TP568-2YH-25P05-UTPC3 |
25 |
0.9 |
14.0 |
150 |
TP568-2YH-50P05-UTPC3 |
50 |
1.1 |
16.5 |
280 |
| TP568-2YH-100P05-UTPC3 |
100 |
1.4 |
21.5 |
530 |
| TP568-2YH-200P05-UTPC3 |
200 |
1.7 |
30.0 |
900 |
| TP568-2YH-300P05-UTPC3 |
300 |
1.7 |
36.0 |
1300 |
| 0.5mm Conductor, 0.9mm Insulated Wire, UTP, PE Sheathed, Outdoor |
| TP568-2Y2Y-10P05-UTPC3 |
10 |
0.9 |
9.5 |
80 |
| TP568-2Y2Y-25P05-UTPC3 |
25 |
0.9 |
13.0 |
150 |
| TP568-2Y2Y-50P05-UTPC3 |
50 |
1.0 |
16.0 |
280 |
| TP568-2Y2Y-100P05-UTPC3 |
100 |
1.1 |
21.5 |
550 |
| TP568-2Y2Y-200P05-UTPC3 |
200 |
1.2 |
28.5 |
1050 |
| TP568-2Y2Y-300P05-UTPC3 |
300 |
1.3 |
34.5 |
1550 |
PE INSULATED CATEGORY 3 FTP CABLES
| Kabel-code |
Aantal paren |
Nominale Condooms Dikte
mm |
Nominal Overall
Diameter
mm |
Nominale Gewicht
kg/km |
| 0.5mm Conductor, 0.9mm Insulated Wire, FTP, PVC Sheathed, Indoor |
| TP568-2Y(St)Y-10P05-FTPC3 |
10 |
0.9 |
10.0 |
85 |
| TP568-2Y(St)Y-25P05-FTPC3 |
25 |
0.9 |
13.5 |
170 |
| TP568-2Y(St)Y-50P05-FTPC3 |
50 |
1.0 |
17.0 |
300 |
| TP568-2Y(St)Y-100P05-FTPC3 |
100 |
1.1 |
22.0 |
570 |
| TP568-2Y(St)Y-200P05-FTPC3 |
200 |
1.2 |
30.0 |
1120 |
| TP568-2Y(St)Y-300P05-FTPC3 |
300 |
1.3 |
36.6 |
1630 |
0.5mm Conductor, 0.9mm Insulated Wire, FTP, LSZH Sheathed, Indoor& Outdoor |
| TP568-2Y(St)H-25P05-FTPC3 |
25 |
0.9 |
14.0 |
170 |
| TP568-2Y(St)H-50P05-FTPC3 |
50 |
1.0 |
17.5 |
300 |
| TP568-2Y(St)H-100P05-FTPC3 |
100 |
1.2 |
23.0 |
580 |
| TP568-2Y(St)H-200P05-FTPC3 |
200 |
1.6 |
32.0 |
1120 |
| TP568-2Y(St)H-300P05-FTPC3 |
300 |
1.6 |
35.0 |
1320 |
0.5mm Conductor, 0.9mm Insulated Wire, FTP, PE Sheathed, Outdoor |
| TP568-2Y(St)2Y-10P05-FTPC3 |
10 |
0.9 |
11.0 |
85 |
| TP568-2Y(St)2Y-25P05-FTPC3 |
25 |
0.9 |
13.5 |
170 |
| TP568-2Y(St)2Y-50P05-FTPC3 |
50 |
1.0 |
16.5 |
300 |
| TP568-2Y(St)2Y-100P05-FTPC3 |
100 |
1.1 |
22.6 |
570 |
| TP568-2Y(St)2Y-200P05-FTPC3 |
200 |
1.2 |
31.0 |
1070 |
| TP568-2Y(St)2Y-300P05-FTPC3 |
300 |
1.3 |
35.5 |
1570 |
